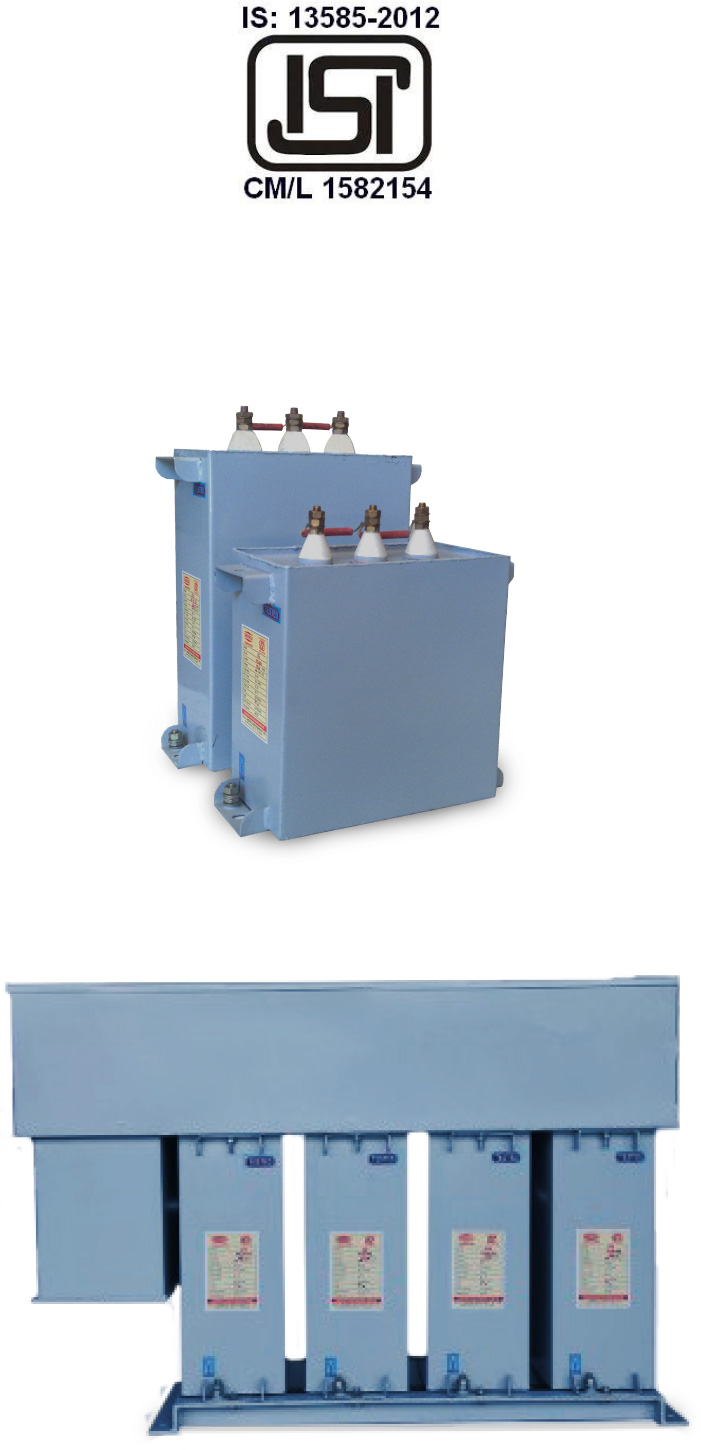

Low voltage
Capacitor

(All Film Design)

  • For Power Factor correction
  • Harmonic filtering
  • Energe internally fused LV All Film capacitor units are used in heavy industrial application.
  • All Film capacitors feature the latest design innovation :
– Extended foil
– Speciality fuses

– Low stress design

– Manufactured and tested to meet (or) exceed the requirements of applicable IS standard.

Technical data

Range
0 – 50 KVAr
Type
APP (Ultra Heavy Duty)
Standard
IS 13585-1994, IEC 60931-2002
Rated Frequency
50 / 60 Hz
Rated voltage
415/440V (or) 525V
Over voltage
+10% (12h/24h), +15% (30m/25h)
+20% (5m/24h), +30% (1m/25h)
Over current
Upto 3 x In
Peak Inrush
current
Upto 500 x In |
Operating Losses (Dielectric)
< 0.2 W / kVAr
Operating Losses (Total)
< 0.35 W / kVAr
Tolerance on capacitance
0 / +10% as per IS
Ambient
Temperature
-25° to 50°C
Cooling
Natural or forced air cooling
Safety Features
Internal Fuse
Impregnation
Non PCB, Biodegradable Oil
Casing
Steel Sheet
Terminals
Porcelain Bushing
Discharge
Discharge Resistors fitted externally, Standard
Resistors / Time
Discharge time 60 seconds, Other discharge times on request
